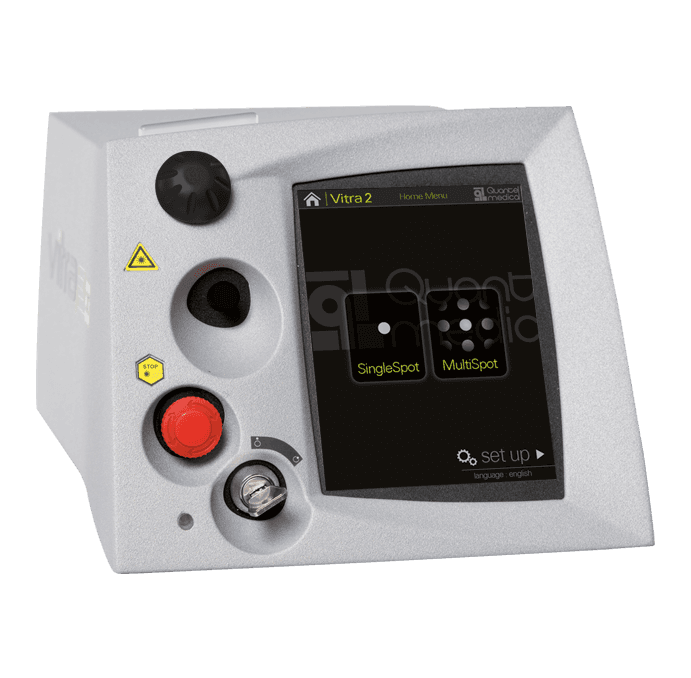

VITRA 2
Abstract
The Quantel Medical Vitra 2 is a 532nm frequency-doubled Nd:YAG photocoagulation laser (up to 1500mW) for retinal treatments, offering both SingleSpot (100-200ms) and MultiSpot pattern scanning (10-20ms) modes, compatible with various slit lamps and Quantel YAG/SLT systems for combined anterior/posterior segment treatment platforms.
Primary Application: Retinal photocoagulation for treating retinal pathologies including:
- Focal laser photocoagulation (leaking blood vessel sealing)
- Peripheral retinal treatments
- Diabetic retinopathy
- Age-related macular degeneration treatments
Treatment Modes:

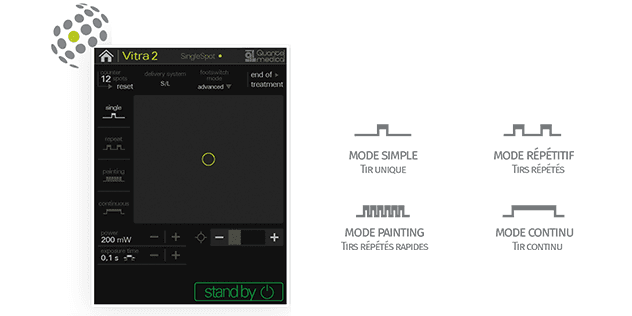

- SingleSpot Mode: Conventional thermal retina treatments using long pulse durations (100-200ms) with 4 customizable shooting modes:Single ModeRepeat ModePainting ModeContinuous Mode
- MultiSpot Pattern Scanning Mode: Uses shorter pulse durations (10-20ms) for faster treatment delivery, better tolerated by patients, with various pattern options (square, circle, triple arcs)
Technical Specifications
- Laser Type: Frequency-doubled Nd:YAG
- Wavelength: 532 nm (green)
- Maximum Power: 1500 mW at tissue
- Pulse Duration: 10 ms to continuous
- Spot Size Range:SingleSpot: 50 µm to 500 µmMultiSpot: 50 µm to 400 µm (continuously variable)
- Design Features: New generation laser cavity with increased power, large touchscreen interface, compact "space-saving" design
Can Be Combined With
The Vitra 2 is designed to be highly versatile and can be combined with:
- Slit Lamps
Streit type slit lampsZeiss type slit lamps (30 SL, 120 SL, 130 SL and clones)Quantel Medical slit lamps - Quantel Medical YAG/SLT Lasers:Optimis Fusion (YAG/SLT laser) - creates a 3-in-1 platform (YAG, SLT, and photocoagulation)Optimis II (YAG laser)CAPSULO (YAG laser for capsulotomy/iridotomy)
- Other Delivery Systems
microscopesLaser indirect ophthalmoscopes (LIO)Laser probes
The system is upgradeable between SingleSpot and MultiSpot modes, and features clinically-oriented software with printable treatment reports.
