PENTACAM

Core Measurement Capabilities

Scheimpflug Imaging Technology

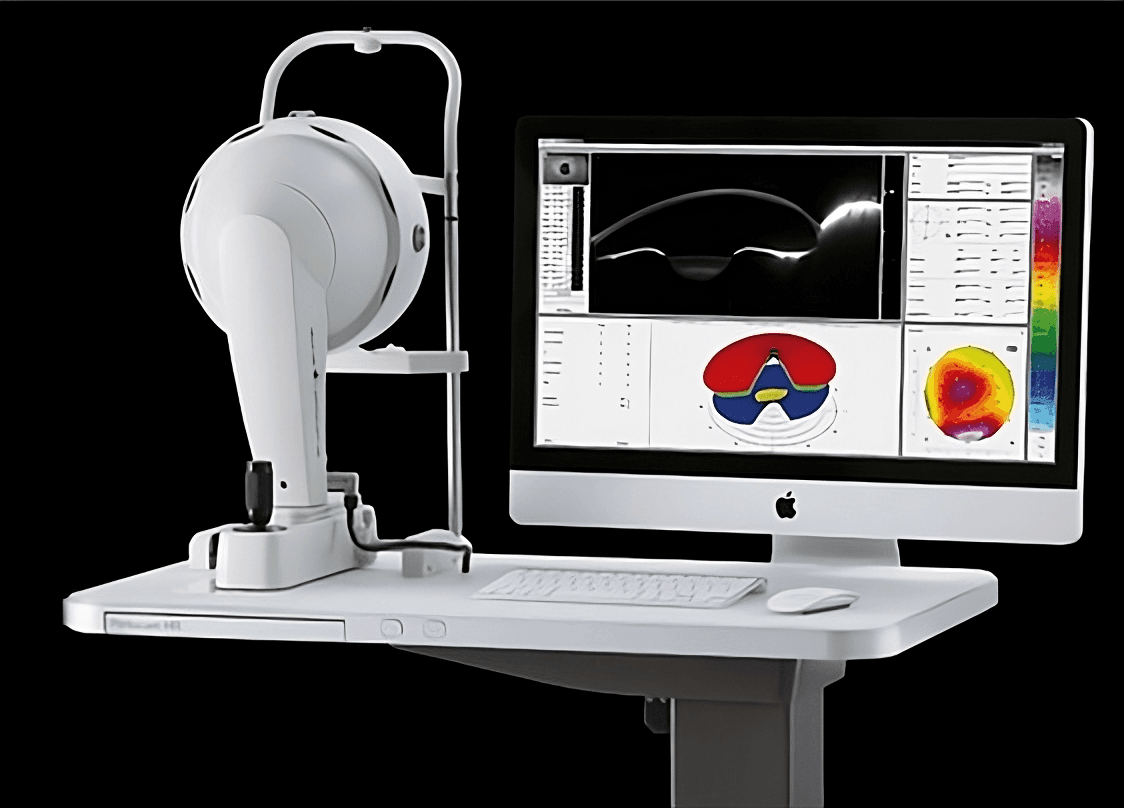

The Pentacam utilizes a rotating Scheimpflug camera that captures up to 100 images in just 2 seconds, providing a complete 360-degree analysis of the anterior segment. This technology ensures that the entire cornea is measured from limbus to limbus, eliminating the central measurement limitations found in Placido-based topographers.

The system employs blue LED illumination at 475 nm (UV-free) to minimize patient discomfort while providing excellent tissue contrast. The digital CCD camera, synchronized with a high-speed processor capable of 400 million operations per second, enables real-time image processing and immediate result display.

Corneal Topography Analysis

Curvature Measurements

The Pentacam provides comprehensive corneal curvature analysis with a measurement range from 3 to 38 mm (9 to 99 diopters). The system achieves exceptional precision:

• Standard Pentacam: ±0.2 D precision and reproducibility

• Pentacam HR/AXL: Enhanced ±0.1 D precision and reproducibility

Multi-Map Display System

The software generates four essential topographic maps simultaneously:

1. Axial Curvature Map: Shows the overall corneal shape and identifies irregular astigmatism

2. Tangential (Instantaneous) Curvature Map: Provides detailed local curvature variations, essential for detecting subtle irregularities

3. Elevation Maps: Displays anterior and posterior corneal surface elevation relative to a best-fit sphere, crucial for ectasia detection

4. Pachymetry Map: Shows corneal thickness distribution across the entire corneal surface

Pachymetry Measurements

The Pentacam performs comprehensive pachymetry analysis, measuring corneal thickness at thousands of points across the cornea. This capability is essential for:

• Glaucoma Management: Accurate central corneal thickness measurements for IOP correction

• Refractive Surgery Planning: Ensuring adequate residual bed thickness

• Keratoconus Detection: Identifying focal thinning patterns characteristic of ectatic diseases

The system provides statistical analysis including minimum thickness location, which often migrates away from the geometric center in pathological conditions.

Anterior Chamber Analysis

Chamber Depth and Volume

The Pentacam measures anterior chamber depth from the corneal endothelium to the anterior lens surface, providing:

• Central anterior chamber depth

• Chamber volume calculations

• Angle analysis for glaucoma screening

Iridocorneal Angle Assessment

Using the Scheimpflug imaging principle, the system visualizes and measures iridocorneal angles, enabling:

• Narrow angle detection

• Angle closure risk assessment

• Pre- and post-surgical angle monitoring

Lens Analysis

The system captures detailed lens information including:

• Lens Thickness: Measured along the optical axis

• Lens Density Assessment: Utilizing the Pentacam Nucleus Staging (PNS) for cataract grading

• Lens Tilt and Decentration: Important for premium IOL planning

Advanced Analysis Features

Fast Screening Report

This automated analysis tool provides a comprehensive overview of corneal health, incorporating:

• Keratoconus Screening: Using established indices and population-based normative data

• Refractive Surgery Screening: Identifying contraindications for laser vision correction

• Glaucoma Screening: Based on anterior chamber parameters and angle analysis

Belin/Ambrósio Enhanced Ectasia Display (BAD)

This sophisticated analysis combines multiple parameters to create a comprehensive ectasia screening tool:

• Elevation-based analysis using enhanced reference surfaces

• Pachymetric progression indices

• Final "D" value providing an overall ectasia risk assessment

• Color-coded display for immediate clinical interpretation

Optional Software Modules

The Pentacam's capabilities can be significantly expanded through various optional software modules, each designed to address specific clinical needs.

IOL Calculation Suite

Premium IOL Formulas

• Barrett Universal II: State-of-the-art formula with excellent accuracy across all axial lengths

• Haigis Formula: Particularly effective for short and long eyes

• SRK/T, HofferQ, Holladay I: Traditional formulas for comparison and verification

• Hill-RBF Calculator: Artificial intelligence-based IOL power calculation

Toric IOL Planning

• Total Corneal Refractive Power (TCRP): Accounts for both anterior and posterior corneal astigmatism

• Toric IOL Calculator: Integrates corneal astigmatism with IOL parameters

• Alignment Guidance: Provides surgical axis markings for optimal IOL positioning

Corneal Analysis Modules

Densitometry Analysis

• Objective Densitometry: Quantifies corneal transparency using standardized units

• Layer-Specific Analysis: Separates anterior, central, and posterior layer opacity

• Progression Tracking: Monitors changes in corneal clarity over time

• Research Applications: Provides data for clinical studies on corneal transparency

Corneal Optical Densitometry Display

• Detailed Corneal Examination: High-resolution analysis of corneal microstructure

• Pathology Detection: Identifies subtle changes in corneal architecture

• Refractive Surgery Planning: Assesses corneal quality for optimal surgical outcomes

Surgical Planning Modules

PhacoOptics

• Ray Tracing Technology: Simulates light path through the eye

• Premium IOL Optimization: Predicts visual outcomes with multifocal and extended depth of focus IOLs

• Asphericity Analysis: Optimizes spherical aberration correction

i-ASSORT (Alpins Method)

• Vector Analysis: Comprehensive astigmatic analysis using established vector principles

• Surgical Planning: Optimizes incision placement and power for astigmatism correction

• Outcome Analysis: Evaluates surgical success using standardized metrics

• Training Tool: Educational module for understanding astigmatic surgery principles

Specialized Applications

Holladay EKR 65

• Equivalent K-Readings: Provides corneal power measurements optimized for IOL calculations

• Post-Refractive Surgery: Accurate IOL calculations in eyes with prior corneal surgery

• Historical Data Integration: Works with pre-surgical corneal measurements when available

Pentacam Nucleus Staging (PNS)

• Objective Cataract Grading: Standardized lens opacity assessment

• Surgical Planning: Helps determine appropriate surgical approach

• Research Applications: Provides quantitative data for cataract studies

Clinical Workflow Integration

Measurement Protocol

The Pentacam's automated measurement process ensures consistent, high-quality results:

1. Auto-Alignment: Intelligent positioning system minimizes operator dependency

2. Quality Control: Built-in image quality assessment ensures reliable measurements

3. Auto-Release: Captures images automatically when quality standards are met

4. Instant Processing: Results available immediately after measurement completion

Data Management

• Comprehensive Database: Stores complete examination history with progression analysis

• Export Capabilities: Supports various formats for electronic medical records integration

• Network Compatibility: Enables multi-user access and remote consultation

• Backup Solutions: Ensures data security and accessibility

Conclusion

The Pentacam system represents a comprehensive solution for anterior segment analysis, combining fundamental measurements with advanced analytical capabilities. The extensive library of optional software modules allows practitioners to customize their system based on specific clinical needs, whether focused on general ophthalmology, refractive surgery, cataract surgery, or specialized research applications.

The system's strength lies not only in its measurement accuracy and comprehensive data collection but also in its ability to integrate multiple parameters into clinically meaningful displays. This integration, combined with the flexibility provided by optional modules, makes the Pentacam an invaluable tool for modern ophthalmic practice, supporting evidence-based decision making and optimal patient outcomes.
