EmAA Pro 2

Complete Test Battery (8 Types)

The system enables 8 types of tests that provide comprehensive analysis of binocular vision, identify convergence deficiencies, and detect signs of visual fatigue:

1. Stereoscopic Vision - Measures depth perception using 3D virtual stimuli

2. PPC (Proximal Point of Convergence) - Assesses near convergence ability

3. Pursuit Movements - Evaluates smooth eye tracking

4. Saccades - Tests rapid eye movements between targets

5. Fixation - Measures eye stability during sustained gaze

6. Distance and Near Phoria - Assesses eye alignment at various distances

7. Fusional Amplitude - Measures vergence ranges (convergence/divergence capacity)

8. Reading Assessment - Analyzes reading patterns and efficiency

REHABILITATION EXERCISES (7 TYPES)

The system offers 7 customizable exercises with various difficulty levels and real-time progress visualization:

1. PPC (Proximal Point of Convergence)

2. Vergences - Convergence and divergence training

3. Pursuit - Smooth tracking exercises

4. Saccades - Rapid eye movement training

5. Physiological Diplopia - Double vision awareness training

6. Head-Eye Coordination

7. Hand-Eye Coordination

TECHNICAL SPECIFICATIONS

Hardware Platform

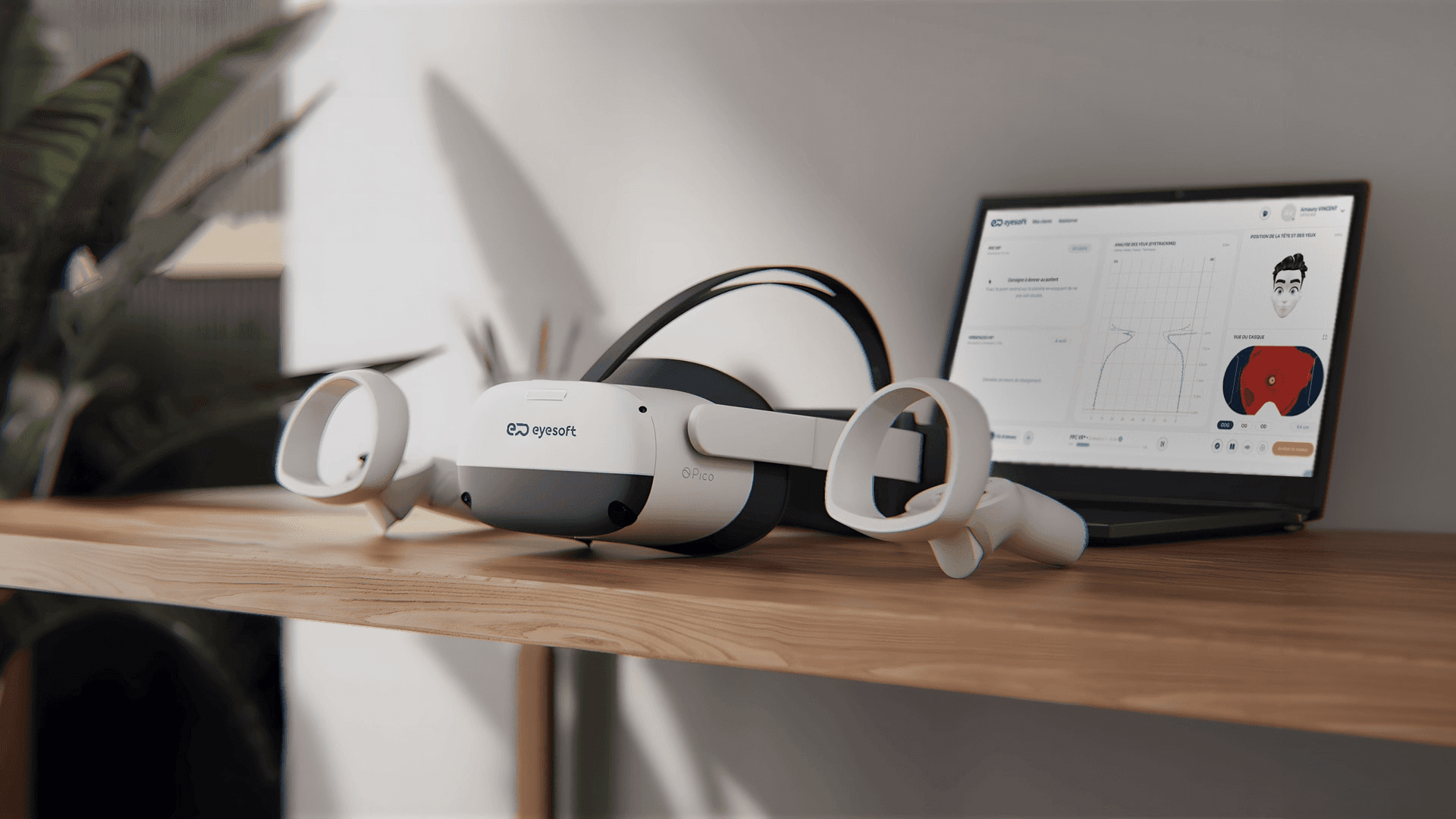

• VR Headset: Uses professional VR headset technology with integrated eye-tracking

• System requires minimum 5 Mbps data rate (ideal: 25 Mbps), 4K RGB resolution, and 75 Hz refresh rate for optimal visual comfort

• Computer and VR headset connect via WiFi; headset is battery-powered and wireless

Eye-Tracking Technology

• Integrated binocular eye-tracking with high precision

• Objective eye-tracking measurements that are independent of the practitioner, reducing human error and providing reliable data

• Real-time tracking of eye movements for both assessment and rehabilitation

• Expert mode provides enhanced analysis of tracking data for refined visual evaluation

Visual Environments

• Two immersive virtual environments: a space module for ascending toward the stars during pursuit tasks, and a realistic aquatic module for immersing into the seabed

• Full 3D stereoscopic display for accurate binocular vision testing

ASSESSMENT PROTOCOL

Timing and Efficiency

• Automated test procedure requiring minimal patient involvement, lasting no more than 7 minutes to optimize office appointments

• Tests can be customized based on patient needs

Reading Analysis (Specialized Module)

The system offers precise analysis of reading ability using eye-tracking, with two tests available: text with two difficulty levels (child/adult) and a visual path using illustrations

Analyzed parameters include:

• Reading time and speed

• Fixations

• Saccades

• Regressions

• Line jumps

Expert Visualization Mode

Enables deeper exploration of eye-tracking data with eye-by-eye analysis, focus on specific sequences, adjustment of interpretations, and comparison with theoretical traces

CLINICAL VALIDATION & CERTIFICATION

• CE-marked medical device certified

• Validated by several clinical studies

• Class I digital medical device commercialized since 2021

DATA MANAGEMENT

• All results are securely stored in patient history and available in PDF format with a single click at the end of evaluation

• Each rehabilitation session is automatically recorded with results available in PDF format

• GDPR compliant for medical data confidentiality

• Web-based interface accessible from any Windows or Mac computer with updated browser

CLINICAL APPLICATIONS

Patient Population

• Available for patients from age 8, provided they have normal cortico-retinal vision (CRN) and adult authorization

Conditions Treated

The tool enables remote treatment of patients with vergence disorders, gaze orientation disorders, neutralization, or even visual-attentional difficulties:

• Convergence insufficiency

• Divergence weakness

• Binocular vision disorders

• Visual fatigue

• Oculomotor dysfunction

• Post-stroke visual rehabilitation

• Neurovision disorders

Contraindications

As with any orthoptic rehabilitation, use may cause temporary effects (visual discomfort, headaches, nausea, dizziness). For patients with neurological or vestibular disorder history (convulsions, epilepsy), careful evaluation is advisable

ADVANCED FEATURES

1. Customization: Intuitive interface allowing practitioners to customize rehabilitation exercises for each patient, adjusting difficulty of tests and exercises like vergence and stereopsis tasks

2. Real-time Monitoring: Practitioners can monitor eye movements in real-time from their workstation

3. Programmable Sessions: Exercises can be pre-programmed and standard sessions created for streamlined consultation management

4. Ergonomic Benefits: Reduces occupational fatigue for orthoptists by limiting repetitive movements

5. Patient Experience: Innovative experience acclaimed by over 98% of surveyed patients

TELEHEALTH MODULE (EMAA Home)

A separate module enables remote orthoptic rehabilitation with the same exercise types, allowing patients to perform rehabilitation at home under practitioner supervision with real-time data synchronization.
