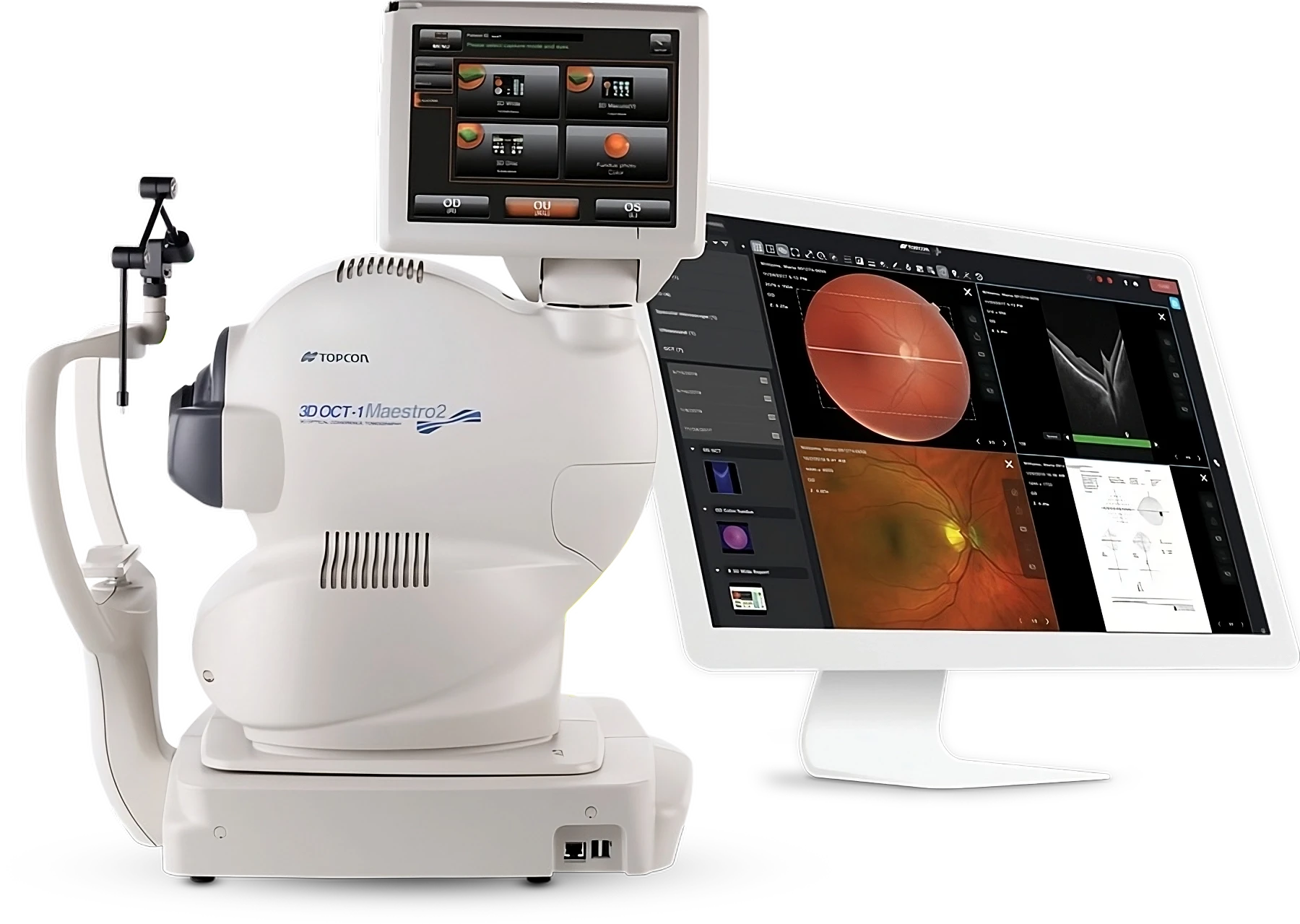

Maestro 2

Key Technical Specifications

OCT Performance

• Scanning Speed: 50,000 A-scans per second

• Axial Resolution: 5 μm (in tissue)

• Transverse Resolution: 20 μm

• Scan Depth: 2.3 mm in tissue

• Wavelength: 840 nm swept source

Imaging Capabilities

Fundus Photography

• Non-mydriatic color fundus imaging

• 45° field of view

• High-resolution digital capture

• Automated alignment and focus

OCT Imaging

• Wide-field OCT scan: 12mm × 9mm covering both macula and optic disc

• Standard macular scans: 6mm × 6mm

• Optic disc scans with RNFL analysis

• Cross-sectional and en-face imaging modes

OCT Angiography (OCTA)

• Multiple scan patterns: 3×3mm, 4.5×4.5mm, and 6×6mm

• High-resolution macular assessment capability

• Wider area examination for diabetic retinopathy screening

Operational Features

• Single-touch automated operation with alignment, focus, and capture

• Rotating monitor for space optimization

• Manual override options for challenging patients

• Integrated analysis software with normative database

• DICOM connectivity for seamless workflow integration

Physical Specifications

• Compact desktop design

• Space-efficient footprint

• Ergonomic patient positioning

• Adjustable working distance

Clinical Applications

• Diabetic retinopathy screening and monitoring

• Age-related macular degeneration assessment

• Glaucoma evaluation and progression analysis

• General retinal pathology documentation

• Routine comprehensive eye examinations

Advantages

• Efficiency: Three imaging modalities in one system

• Automation: Reduces operator dependency

• Quality: Consistent, high-resolution imaging

• Workflow: Streamlined examination process

• Cost-effectiveness: Eliminates need for separate systems

The Maestro2 represents Topcon's commitment to advancing automated imaging technology, delivering professional-grade multimodal capabilities in an intuitive, efficient platform designed for modern eye care practices.
